Pacific Coast Steel Detailing has been furnishing quality Steel Detailing drawings for Fabricators since 1997. We produce shop detail drawings using Tekla Structures BIM or AutoCAD Programs.
Why take advantage of using PCSD and Tekla Modeling programs?
a.) Quote from the General Contractor on our latest project:
“Pacific Coast Steel Detailing was used by Westco for the structural steel detailing on my project.  From the beginning of the conceptual design phases, PCSD was not only involved but very proactive in their detailing.  PCSD stayed in tune with the construction schedule and made every effort to ensure a challenging design was met on time.  The schedule was aggressive and the project complex and PCSD met our expectations!  In addition PCSD modeled the structural steel using “Tekla” software which allowed us , the general contractor, to use it in our 3D modeling coordination of the Mechanical, Plumbing, Electrical, and Fire Protection systems.  It was a real benefit to have this ability in our coordination.  PCSD was without a doubt, a positive addition to this project!”
Alan Griffin
DPR Construction
b.) Less errors than using 2D Cadd or hand drawings.
c.) Major revisions are incorporated quickly. This will keep fabrication schedules on track.
d.) The use of CNC files, if desired, can save fabrication hours.
e.) Download Bill of Materials to programs such as FabTrol MRP. Why reenter data that is already available in electronic form?
f.) Fabricators, General Contractors, and Owners like using our models for other trades.
If you would like a quote for your detailing needs please call me at 925-484-4371 or email me at
I look forward to hearing from you.
Todd Silvia

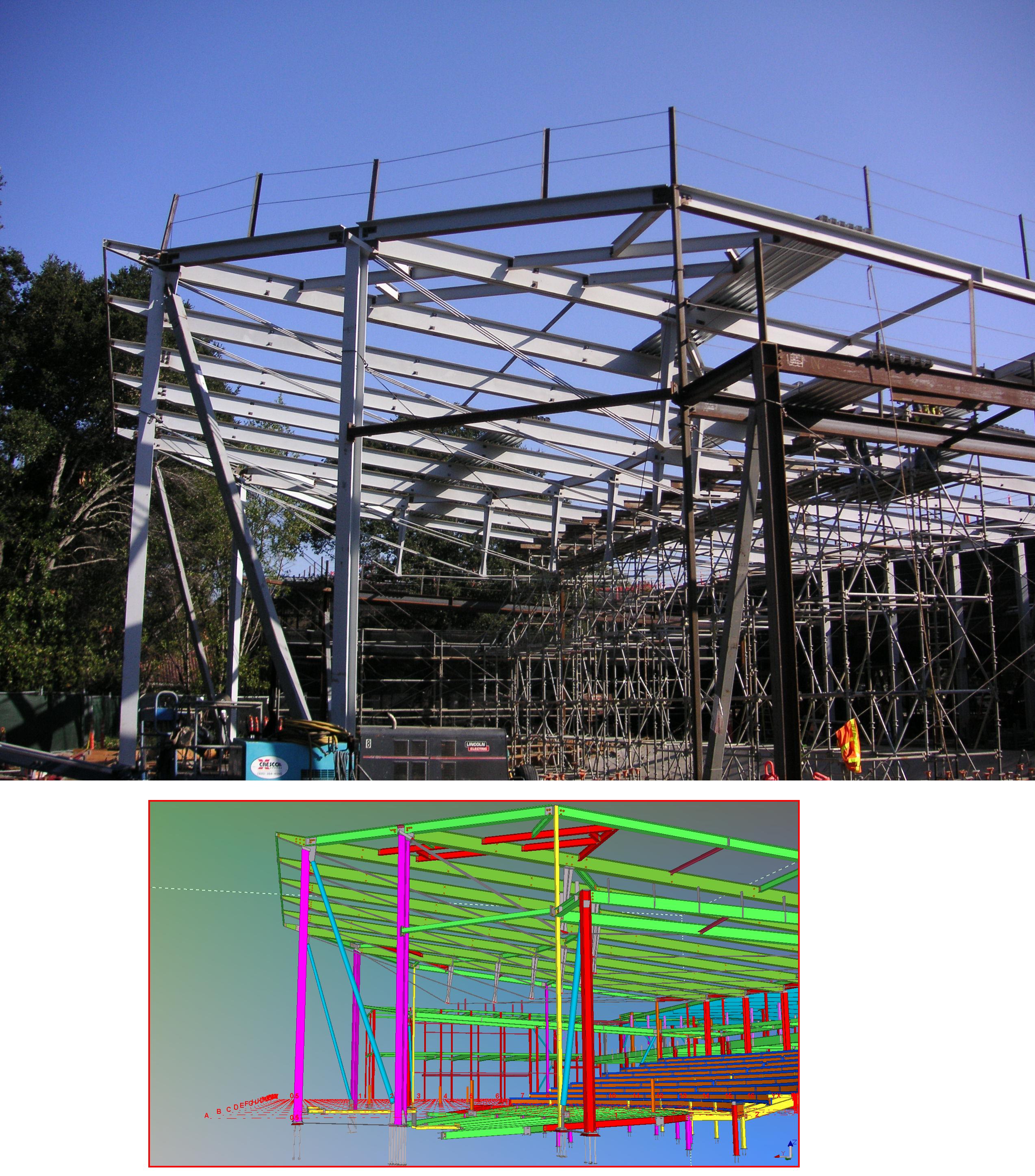

School in Atherton, CA.

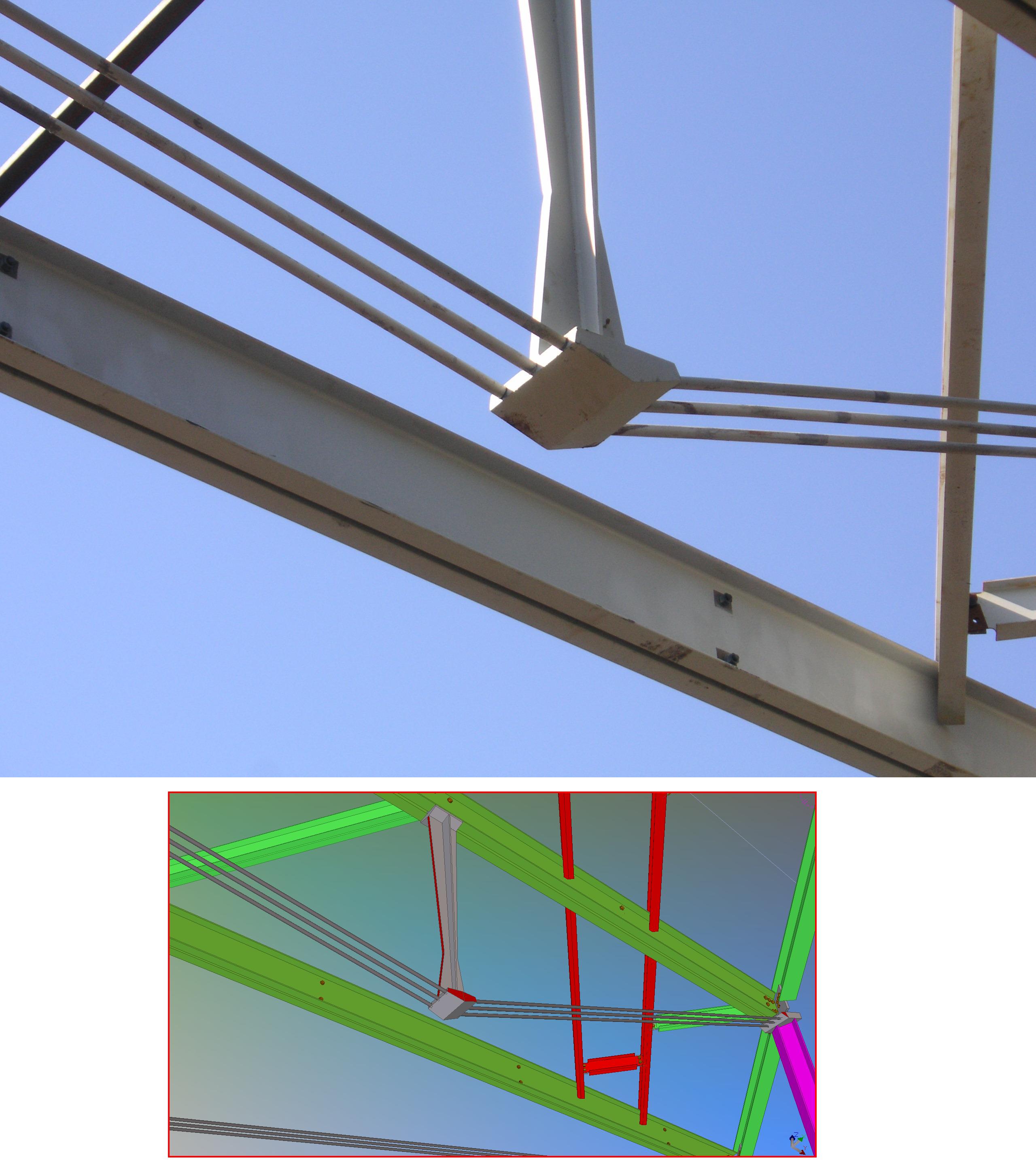

PCSD BIM below actual picture.

Click to view Atherton PCSD BIM

At Pacific Coast Steel Detailing, we strive for excellence in quality of work.
We use the latest technologies to aid the fabricator in speeding up the fabrication process. Whether it be through CNC outputs or computerized material lists. We make every attempt to give our customers exactly what they are looking for. Quality drawings in a timely manner.
